Robot Perception and Control

Tutorial

Last updated: Jul / 25 /2024
Kashu Yamazaki
kyamazak@andrew.cmu.edu

Docker 🐳

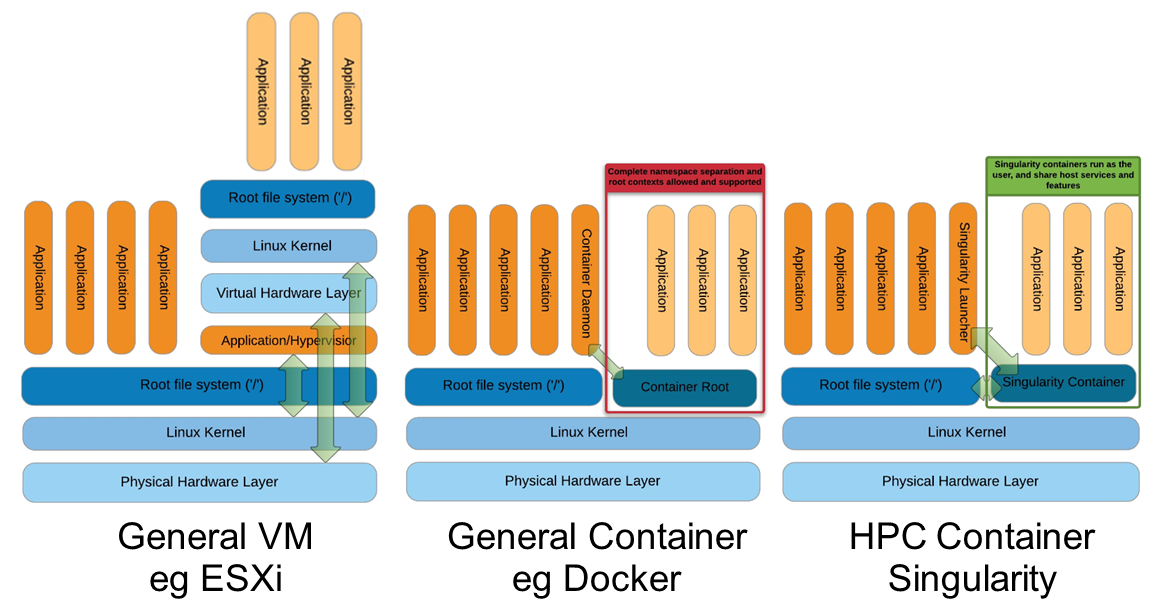

Virtual Machine vs Containers

A Virtual Machine (VM) virtualizes the underlying hardware by means of a hypervisor, while it provides operating-system-level virtualization. Containers are more lightweight than VMs, as they are not emulating hardware.

#center

Kashu Yamazaki, 2024

Why Docker?

There are several merits of using Docker.

  • We can share the environment 😀
    • You can share the Docker Image to help others setup and run your code.
    • No more repeated setup process on every different machine!
  • We can improve reproducibility.
    • The code works even after several years on the Image.
    • No more suffering from messing up your environment after installing some software updates.

Note for Mac and Windows

Docker uses the Linux kernel to manage resources between containers; Docker has to run in a Linux virtual machine for Mac and Windows, which makes some feature fail on Mac and Windows.
Also the chip architecture needs to be considered (M1 and M2): some has to cross compile docker buildx build

Kashu Yamazaki, 2024

Structure of Docker Environment

#center

  • Image: a template that contains middleware settings or commands needed to launch a container.
  • Container: a virtual environment created based on a Docker Image where web servers, PyTorch environment, ... run.
  • Registry: Docker Hub is the place where the Images are published and shared.
Kashu Yamazaki, 2024

Managing Images and Containers

  • List Images: docker images
  • Remove an Image: docker rmi <imageID>
  • Prune an Image: docker image prune
  • Get an Image: docker pull
  • Build an Image: docker build -t <imageName> -f Dockerfile .
  • List Containers: docker ps -a
  • Remove a Container: docker rm <containerID>
  • Start a Container: docker run <imageName>
  • Attach to a running Shell: docker exec -it <containerID> bash

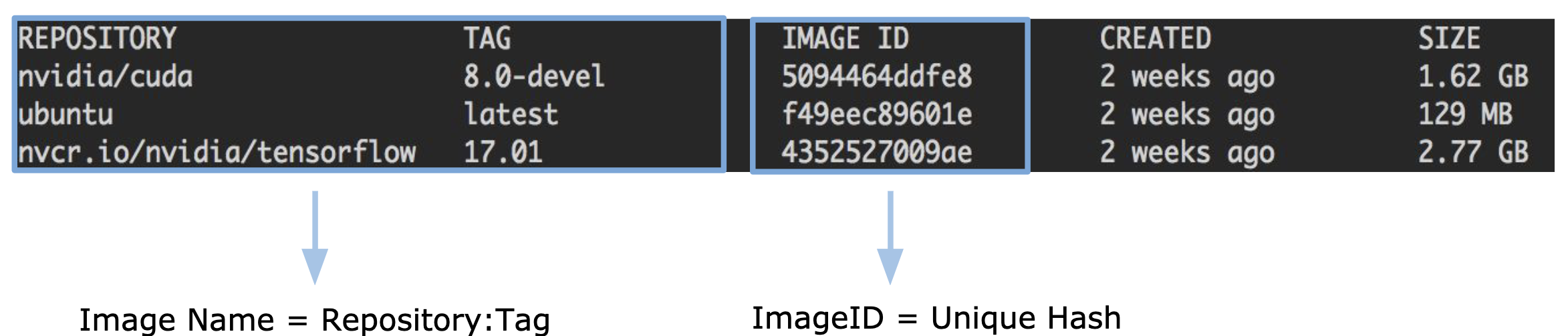

With docker images command, you can check <imageName> and <imageID>.

#center

Kashu Yamazaki, 2024

Getting your own Image

You can write a Dockerfile to create your own image:

# Specify the base image: you can explore docker hub.
FROM pytorch/pytorch:2.0.1-cuda11.7-cudnn8-runtime
# Install dependencies and command-line tools.
RUN apt-get update && apt-get install -y build-essential cmake git wget
# Set the working directory.
WORKDIR /workspace
ENV HOME /workspace
# Pip install python packages.
RUN pip install timm opencv-python

Then: docker build -t <imageName> -f /path/to/Dockerfile . to build the image.
You can also publish your image on DockerHub by: docker login && docker push <imageName>

Kashu Yamazaki, 2024

Running Containers

Docker run Options

  • --rm remove the container after it exits
  • --gpus for GPU isolation
  • -i -t or -it interactive, and connect a "tty"
  • -p 5004:8888 map port 8888 on the host to 5004 inside the container
  • -v ~/data:/data map storage volume from host to container (bind mount) i.e. bind the ~/data directory in your home directory to /data in the container

Starts TensorFlow with ports, volumes, console, and comment (All 1 line):

docker run --rm -it --gpus all -p 5004:8888 -v ~/data:/data <imageName>
Kashu Yamazaki, 2024

Running GUI Applications with Docker

  1. Allow local X11 connections

    xhost local:root

  2. Run docker with options

  • Intel GPU

    docker run --device=/dev/dri:/dev/dri -v /tmp/.X11-unix:/tmp/.X11-unix -e DISPLAY

  • NVIDIA GPU

    docker run  --gpus 'all,"capabilities=compute,utility,graphics"' -v /tmp/.X11-unix:/tmp/.X11-unix -e DISPLAY
Kashu Yamazaki, 2024

PyTorch 🔥

Computational Graph

Two elements of computational graph: valuable (blue) and operator (green).

#center

import numpy as np

B, C = 3, 4
x = np.random.randn(B,C)
y = np.random.randn(B,C)
z = np.random.randn(B,C)

# forward pass
a = x * y
b = a + z
c = np.sum(b)

# backward pass (gradient computation)
grad_c = np.ones((1))
grad_b = np.tile(grad_c, b.shape)
grad_a = grad_b.copy()
grad_z = grad_b.copy()
grad_x = grad_a * y
grad_y = grad_a * x

import torch

B, C = 3, 4
x = torch.randn(B,C, requires_grad=True)
y = torch.randn(B,C, requires_grad=True)
z = torch.randn(B,C, requires_grad=True)

# forward pass
a = x * y
b = a + z
c = b.sum()

# backward pass (gradient computation)
c.backward()

PyTorch implements computational graph with: tensor and function, which comes with AD for easy gradient computation.

Kashu Yamazaki, 2024

Tensors

Kashu Yamazaki, 2024

Devices

CUDA and CPU

device = "cuda" if torch.cuda.is_available() else "cpu"

# move the array to a device
torch_arr = torch_arr.to(device)
print(torch_arr.device)

# move to cuda
torch_arr = torch_arr.to("cuda")
torch_arr = torch_arr.to("cuda:0") # GPU at idx 0
torch_arr = torch_arr.cuda()

# move to cpu
torch_arr = torch_arr.to("cpu")
torch_arr = torch_arr.cpu()

NumPy Array to Torch Tensor (CPU)

# Numpy to Torch
torch_arr = torch.from_numpy(np_arr) # cpu tensor

# Torch to Numpy
np_arr = torch_arr.cpu().numpy() # first move to cpu

Type Checking

type(torch_arr.cuda())
# torch.cuda.FloatTensor
type(torch_arr.cpu())
# torch.cpu.FloatTensor
type(np_arr)
# numpy.ndarray
Kashu Yamazaki, 2024

Gradients

Kashu Yamazaki, 2024

Optimizers and Loss functions

Kashu Yamazaki, 2024

nn.Module docs

A neural network model and its components can be represented by a nn.Module class.

class MLP(nn.Module):
    def __init__(self, ):
        super().__init__() # you have to call this in all child class!
        self.layer1 = nn.Linear(764, 100) # nn.Linear also inherits nn.Module and implements Linear layer (y = w*x + b)
        self.layer2 = nn.Linear(100, 10)

    def forward(self, x): # forward is called in __call__() so that you can run the forward pass just by module(x)
        return self.layer2(F.relu(self.layer(x)))
  • __init__: defines the parts that make up the model (sub-module or parameters)
  • forward: performs the actual forward computation

PyTorch pre-defines common modules of the modern deep neural networks. See more at basic building blocks

Kashu Yamazaki, 2024
