Robot Perception and Control

Homogeneous Transformations

Rigid motions can be represented in set of matrices of the following form so that composition of rigid motions can be reduced to matrix multiplication.

This represents a homogeneous transformation matrix H, where R is a rotation matrix from the special orthogonal group SO(3), and d is a translation vector in 3D. The inverse transformation is given by:

Homogeneous Transformations

The most general homogeneous transformation that we consider may be written as:

Here, is a vector representing the direction of ( axis of new frame) in the original frame, represents the direction of , and represents the direction of . The vector represents the position of the new origin in the original frame.

Traditional 3D representations

Voxel: simple extension of concept of pixel into 3D
we can reuse the thechniques (CNNs, etc.) used in images
✗ occupies too much memory (thus usually limited to )

Octree: hierarchical voxel
high quality 3D with less memory
✗ hard to generate and store

Point Cloud: group of points represents the 3D scene
much compact compared to voxel
✗ cannot represent the surface

Mesh: group of triangles (polygons) represents the 3D scene
very compact
✗ hard to obtain the mesh

Neural Fields

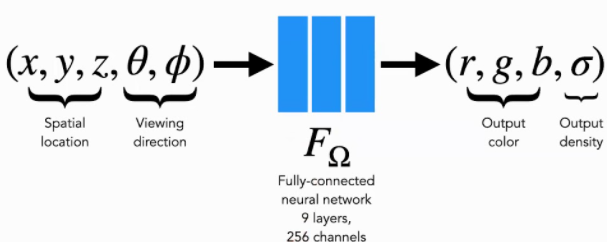

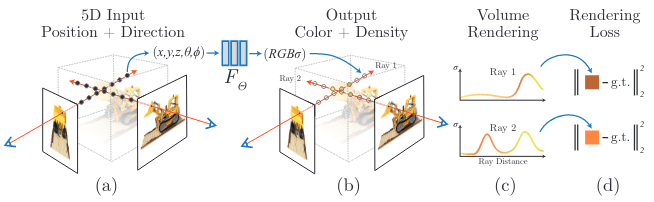

A field is a physical quantity that has a value for each point in space and time. A field can be expressed as a function that takes spacial coordinates as independent variables. A neural field is a field that is parameterized fully or partially by neural networks.

Dex-NeRF arxiv

Gaussian Splatting
